Mitsubishi Evo 4G63 H-Beam Connecting Rod
- Forged 4340 EN24 Chrome Moly
Steel Connecting Rods
- Fits: Mitsubishi Lancer
Evolution I / II / III / IV / V / VI / VII / VIII / IX 2.0L 4G63

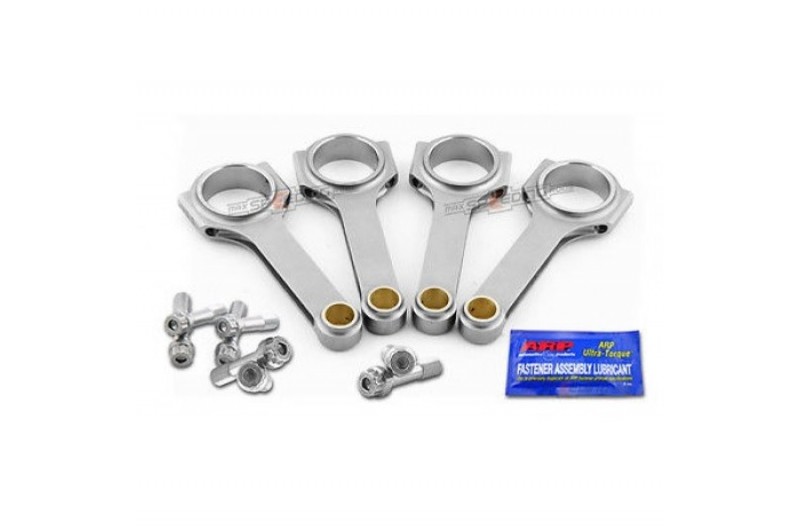

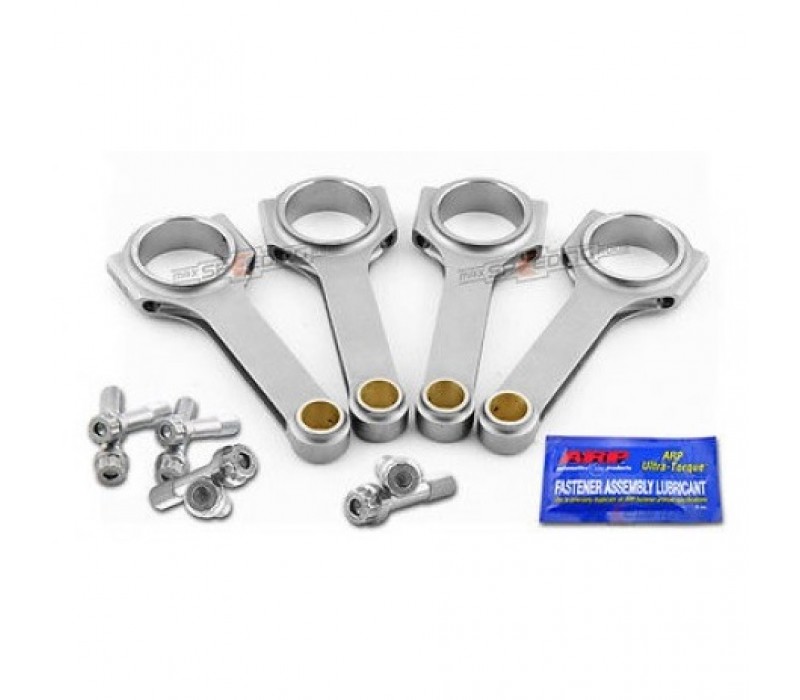

- Include 4 Pieces + ARP 2000
Bolts
Mitsubishi Lancer Evolution 1-9 2.0L 4G63 H-Beam Connecting Rod
Feature | |
Type | Forged 4340 EN24 Aircraft Chrome Moly Steel H-Beam Connecting Rod |
Quantity | 1 set of 4 Pieces |
Tolerance | Set balanced to +/- |
Bolts | With 5/16" ARP 2000 Bolts |
Pin design | Bronzed bushing floating pin |
Dimensions | |
Center to center length | 150mm |
Big end diameter | 48mm |
Small end diameter | 22mm |
Big end width | XX mm |
Small end width | XX mm |
- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin
