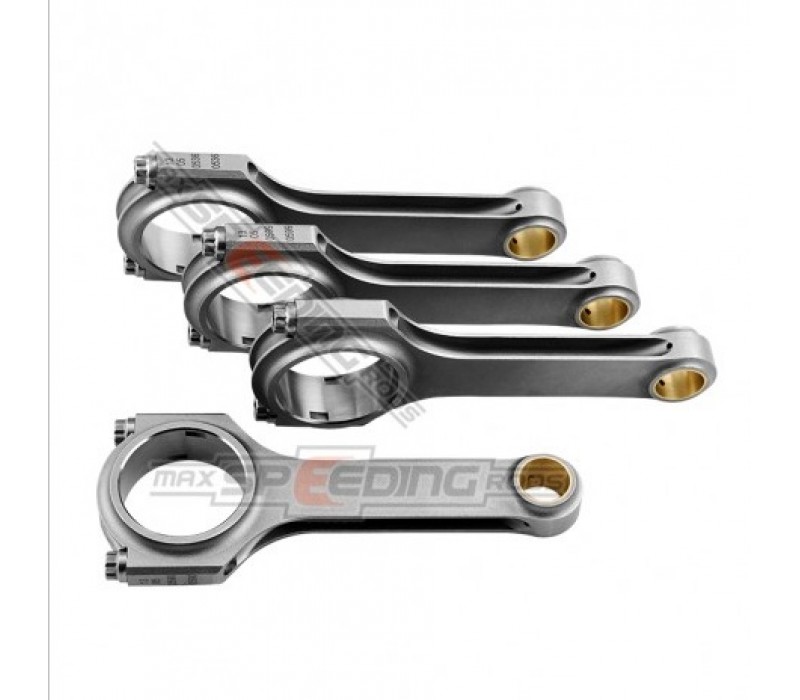

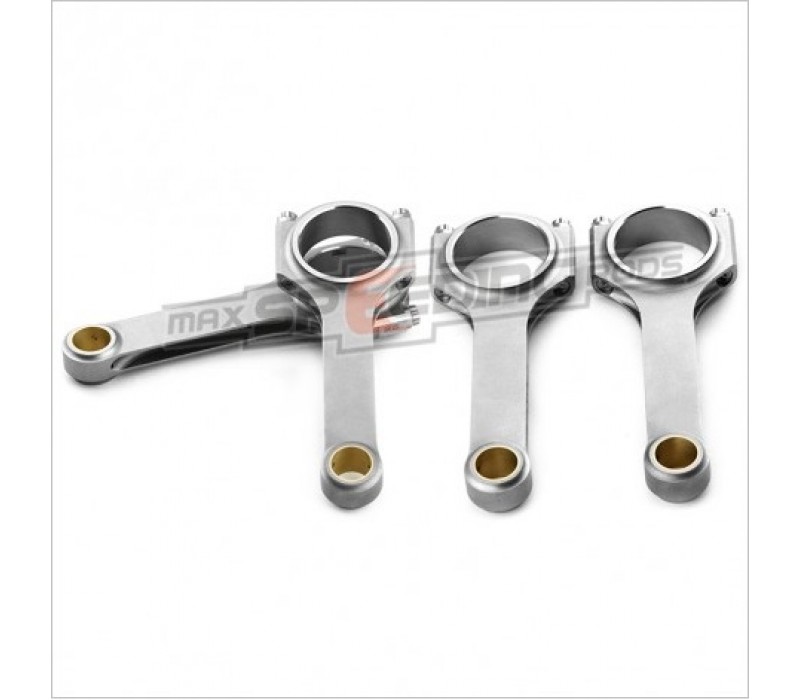

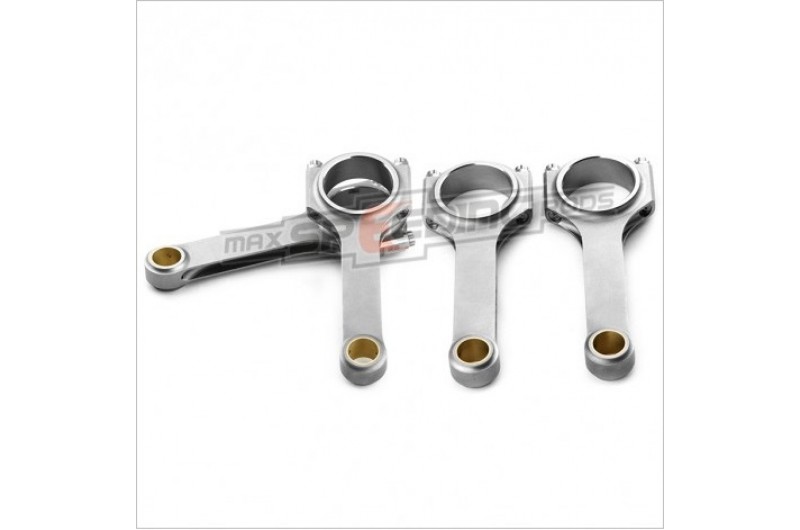

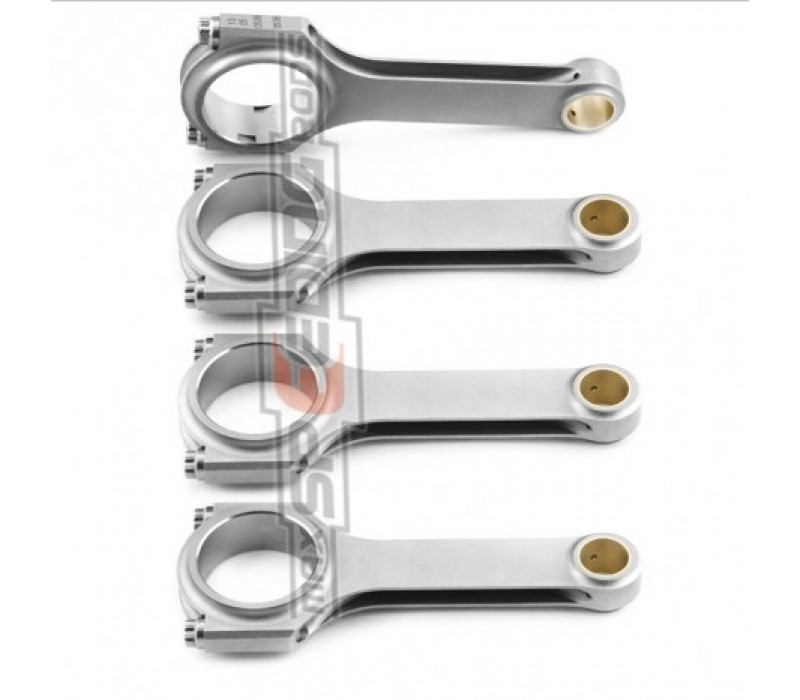

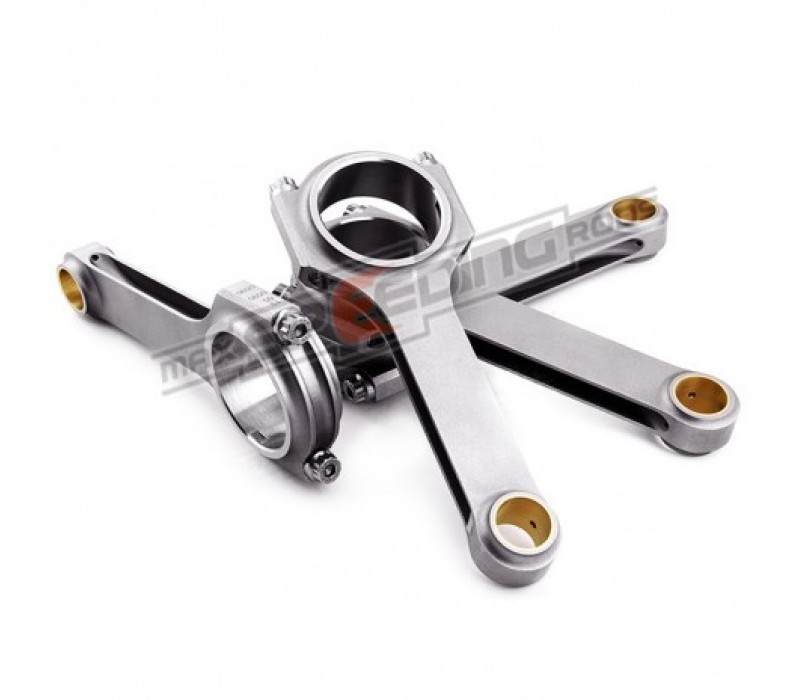

Honda B18 GS-R Н-образные шатуны
Honda B18 GSR Н-образные шатуны
- Forged 4340 EN24 Chrome Moly
Steel Connecing Rods
- Fits: Honda / Acura Integra
GS-R 1.8L B18C1 & DC2 Type-R B18C5
- Include 4 Pieces + ARP
2000 Bolts
Honda / Acura Integra GS-R 1.8L
B18C1 & DC2 Type-R B18C5 Connecting Rod
Feature | |
Type | Forged 4340 EN24 Aircraft Chrome Moly Steel H-Beam Connecting Rod |
Quantity | 1 set of 4 Pieces |
Tolerance | Set balanced to +/- |
Bolts | With 5/16" ARP 2000 Bolts |
Pin design | Bronzed bushing floating pin |
Dimensions | |
Center to center length | 138mm |
Big end diameter | 48mm |
Small end diameter | 21mm |
Big end width | 21mm |
Small end width | 18mm |
- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin
