Honda D15B2 Н-образные шатуны
-Forged 4340 EN24 Chrome Moly Steel Connecting Rods
-Fits: Honda Civic 1.5L D15B2

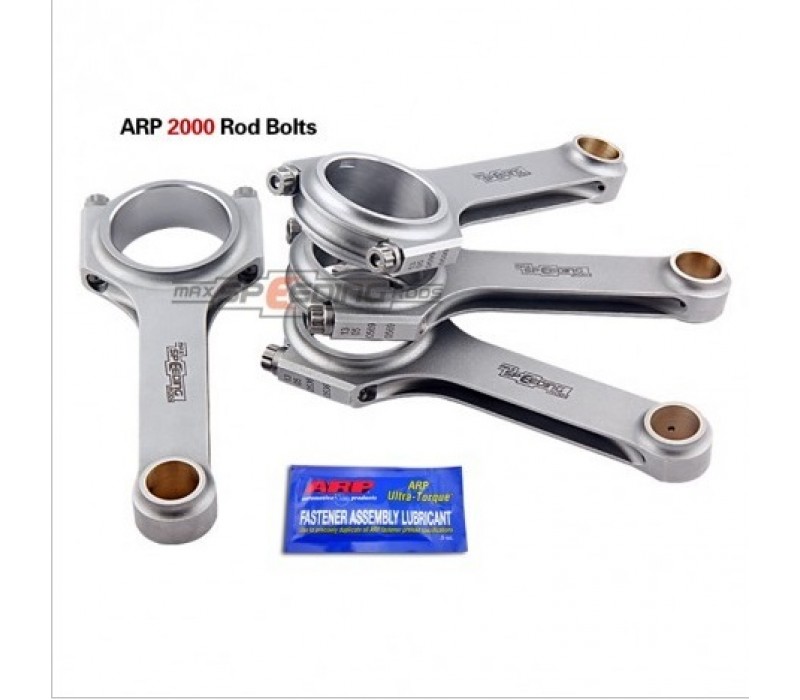

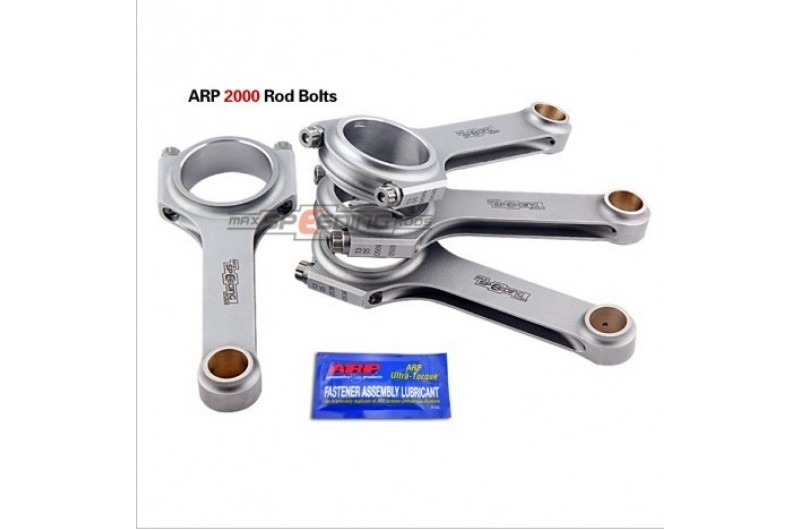

-Include 4 Pieces + ARP 2000 Bolts

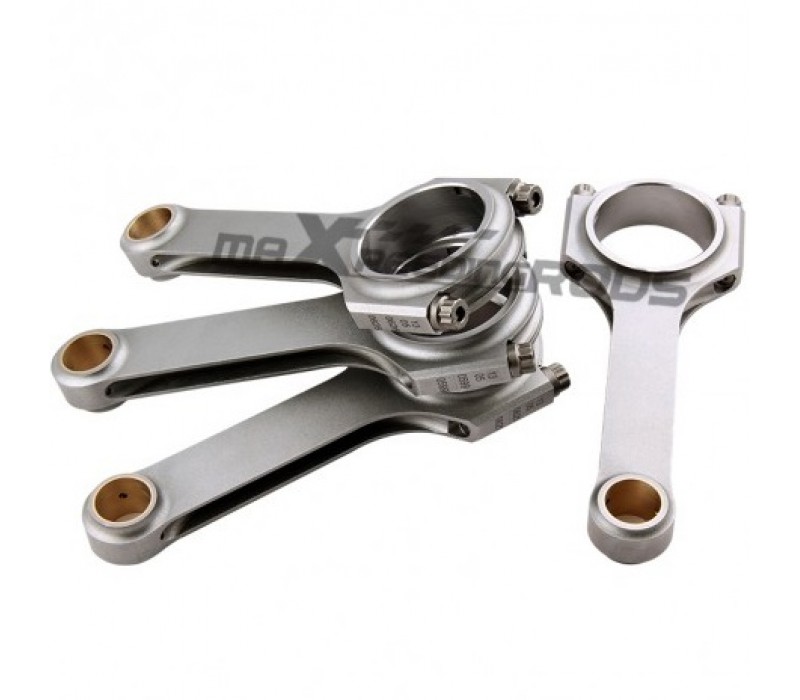

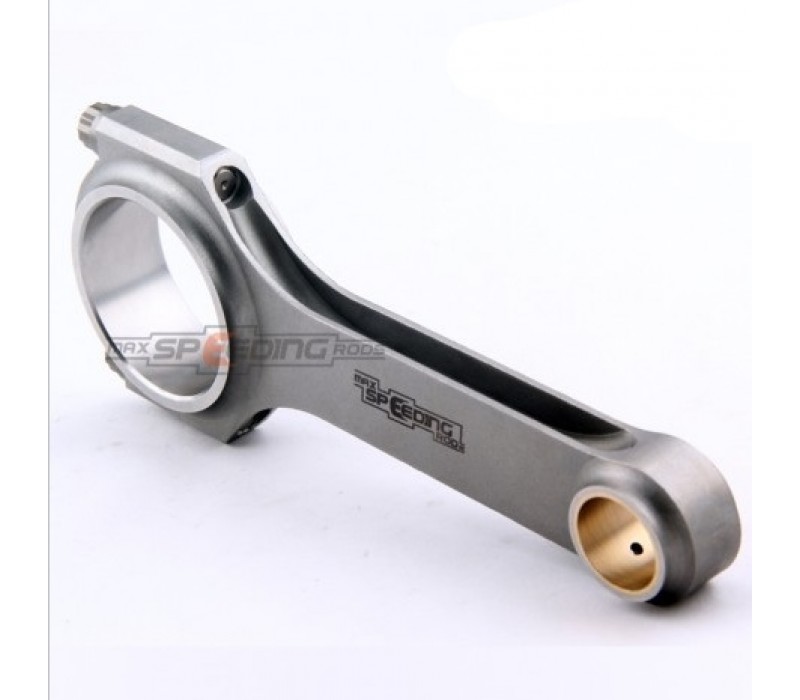

Honda Civic 1.5L D15B2 H-Beam Connecting Rod
|
Feature |
|
|
Type |
Forged 4340 EN24 Aircraft Chrome Moly Steel
H-Beam Connecting Rod |
|
Quantity |
1 set of 4
Pieces |
|
Tolerance |
Set
balanced to +/- |
|
Bolts |
With
5/16" ARP 2000 Bolts |
|
Pin
design |
Bronzed
bushing floating pin |
|
Dimensions |
|
|
Center
to center length |
52.95"
(134.5mm ) |
|
Big
end diameter |
45mm |
|
Small
end diameter |
19mm |
|
Big
end width |
22.8mm |
|
Small
end width |
18mm |
- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine

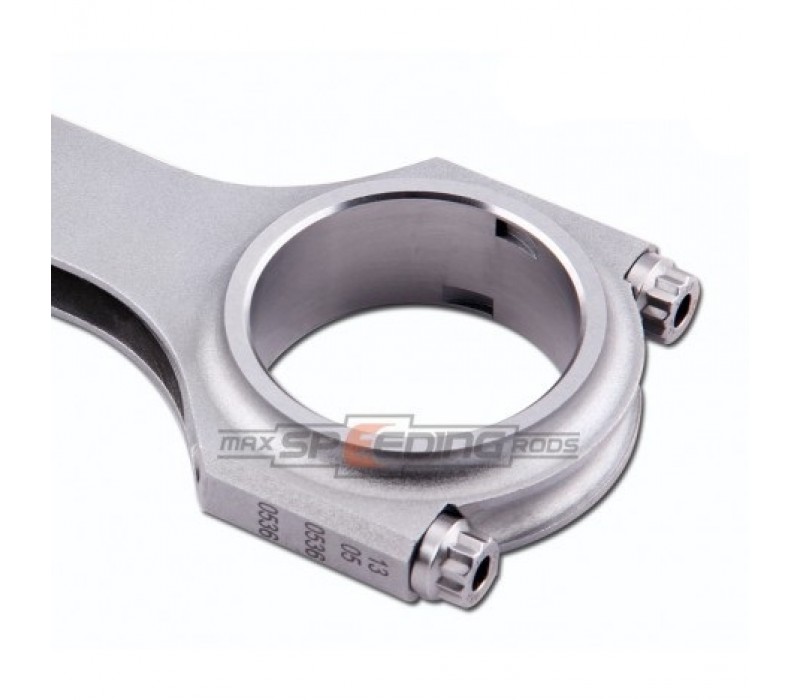

- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin
